1. Overview
Cone seal welded hinged pipe joints andProcess lubricationCone seal welded adjustable pipe joint. Working temperature is -25~80℃,

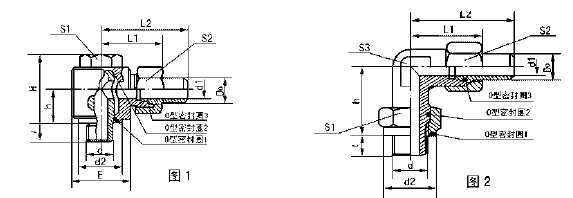

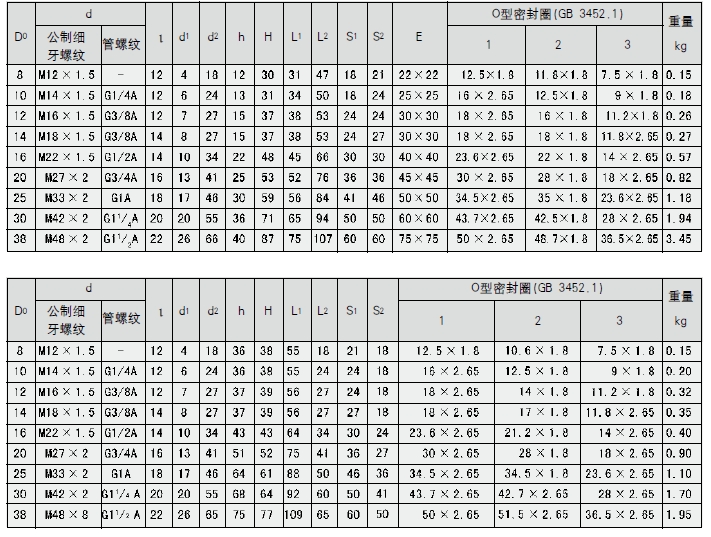

Nominal pressure PN ≤ 31.5MPa. The form and size are shown in Figure 1, Figure 2 and Table 1, Table 2.
2. Structural form
3. Dimensions
4. Ordering Marking Instructions
1. Pipe outer diameter 16mm, connecting thread d=M22×1.5 cone seal welded hinged pipe joint.
Pipe joint 16-M22×1.5 JB/ZQ4188-97
2. The outer diameter of the pipe is 20mm, and the connecting thread is M27×2 cone seal welded adjustable pipe joint.
Pipe joint 20-M27×2 JB/ZQ4189-97
